Outdoor Cabinet Heating Assemblies

Project-specific electric heating assemblies for outdoor cabinets exposed to low ambient temperatures, frost risk, and temperature maintenance requirements.

Typical Pain Points

Cold-weather startup concerns
Frost risk around enclosed components
Outdoor cabinet space and service access limits

What We Provide

Heater type and wattage review
Mounting plate, bracket, or guard planning
Wiring exit direction and terminal reservation

Project Inputs

Outdoor temperature range
Target internal temperature
Cabinet dimensions and available mounting area

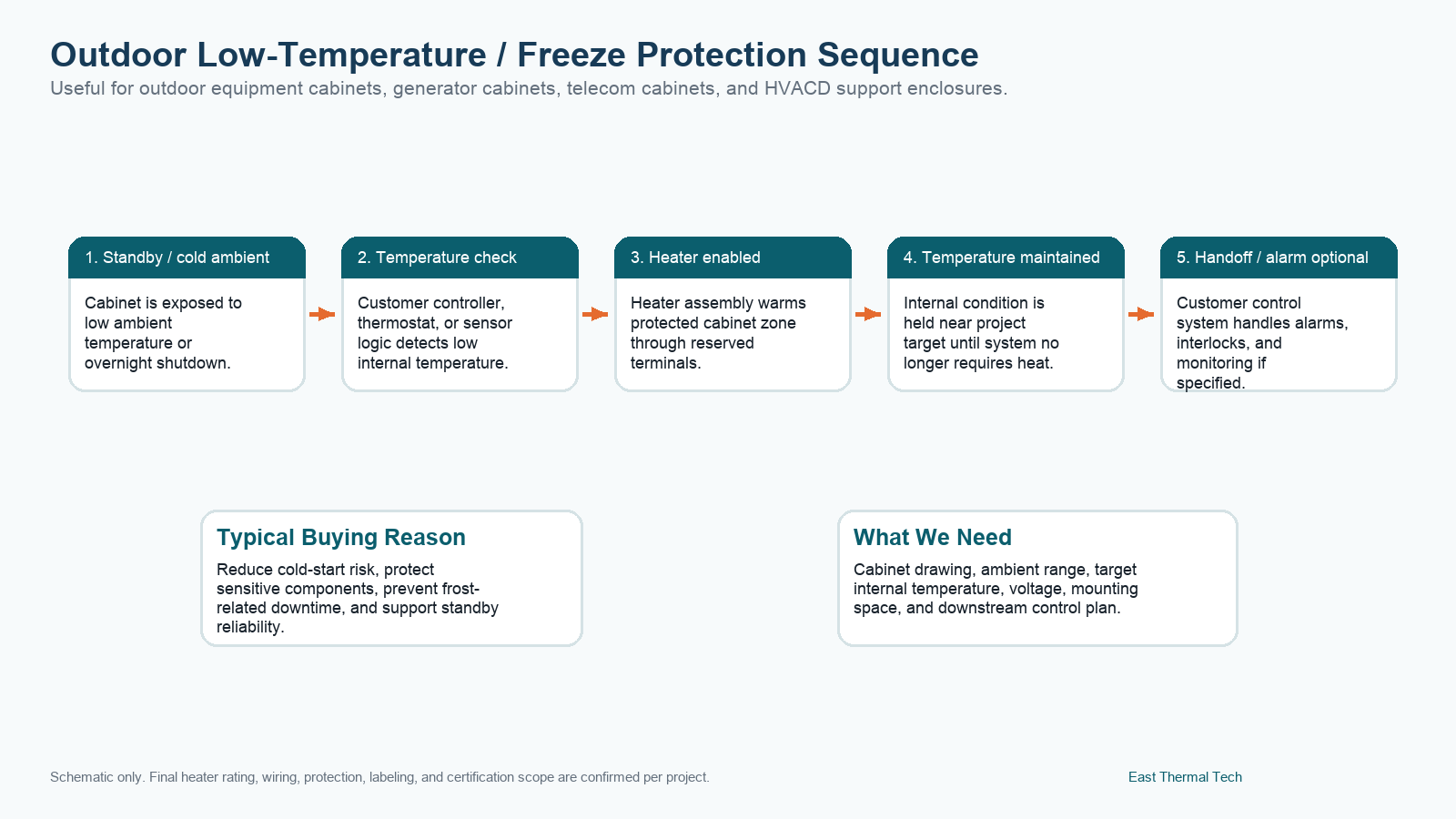

Outdoor cabinet freeze-protection sequence from standby to temperature recovery — Schematic only. Final control thresholds remain part of the customer's downstream control design.

Cold-Weather Review

The heater package is reviewed around the minimum ambient, target internal temperature, cabinet heat loss, available power, and mounting area.

Heater and guard placement
Clearance from customer equipment
Wire exit and terminal location
Prototype fit and service-access review

Side-Mounted Heating When Floor Space Is Occupied

A side-wall layout may be an option when existing equipment occupies the cabinet floor. This concept shows the mounting support, removable heating module and reserved wiring interface.

40-second concept animation, not a delivered customer case or a maintenance procedure. Assembly is shown de-energized, with downstream customer wiring disconnected. Mounting orientation, access, protection and certification scope require project review.

Share the side-wall mounting area, opening dimensions and front access space, together with voltage, ambient range and target temperature. We review the heating assembly; downstream controls remain with your team.

Request a Side-Space Review Download full film (2.19 MB)8-second access excerpt

Review One Outdoor Cabinet

Send drawings, voltage, ambient range, and target internal temperature for review.

Send a Drawing Download Product Catalog
